Clamping cylinders without through-hole

For actuation of power chucks or collet chucks for partial hollow or full clamping

RÖHM clamping cylinders without through-hole are optimally suited for power chucks or special clamps for full or partial hollow clamping. Due to the possible horizontal or vertical installation position, the clamping cylinders can be used flexibly, and the safety device ensures operational safety even when the power supply fails during spindle rotation.

The clamping cylinders from Röhm come with either hydraulic or pneumatic actuation.

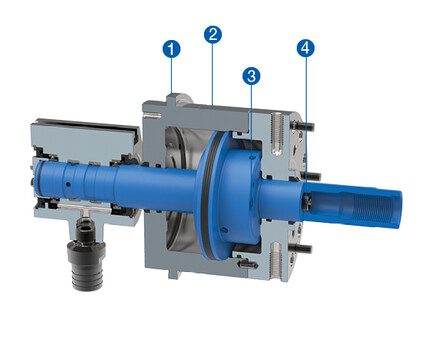

1: Stroke monitor to monitor the clamping status

2: Low rotating mass due to compact construction for lowest possible spindle load

3: Safety device to ensure operating safety

4: Prepared for media feed-through via optional rotary union (except LVS)

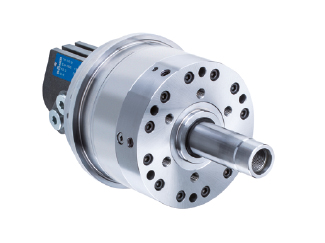

Cylinder for hydraulic actuation for operating pressures of 8 - 80 bar
Optional: Linear path measuring system F90.

Link to eShop

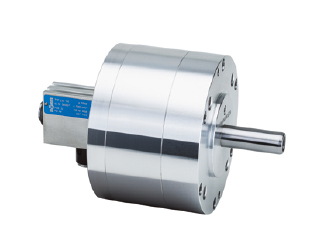

Cylinder with pneumatic actuation for operating pressures of 2 - 10 bar

Link to eShop
