Geared scroll chucks and individual jaw adjustment

for variable manufacturing for aligning irregularly-shaped workpieces

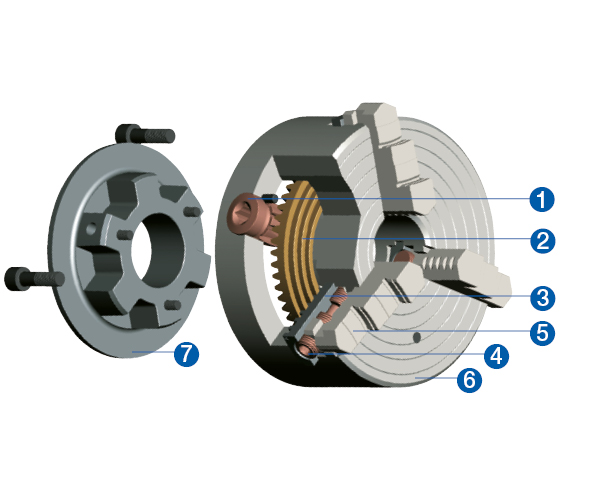

Through a radially arranged drive (1, hardened), the force is transferred via bevel gearing to a (hardened) spiral ring (2) and further conducted via the spiral to the base jaws (3, hardened and ground), spindle (4, hardened) and reversible jaws (5, hardened and ground). The position of the workpiece can be adjusted by turning the spindle. Steel body (6), cover (7).




ES series with fine adjustment

for machining of irregularly-shaped workpieces, 160-630 mm outside diameter; up to 105 kN clamping force
