Manufacturing cast and VA housings with RÖHM key bar chuck DURO-TA XT

On request, cast and VA housings are mainly created with tremendous reliability as one-off productions from the idea, continuing with the development and right up to manufacturing. NTG recently invested in an ultramodern turning/milling centre from DMG to manufacture them. To make sure that the DMC 210 FD can utilise its capacity as flexibly as possible, NTG chose a DURO-TA XT manual chuck from Röhm. The latest chucks from Röhm with an impressive 1200 mm diameter are characterised by their compact design, workpiece accessibility and flexibility despite their size.

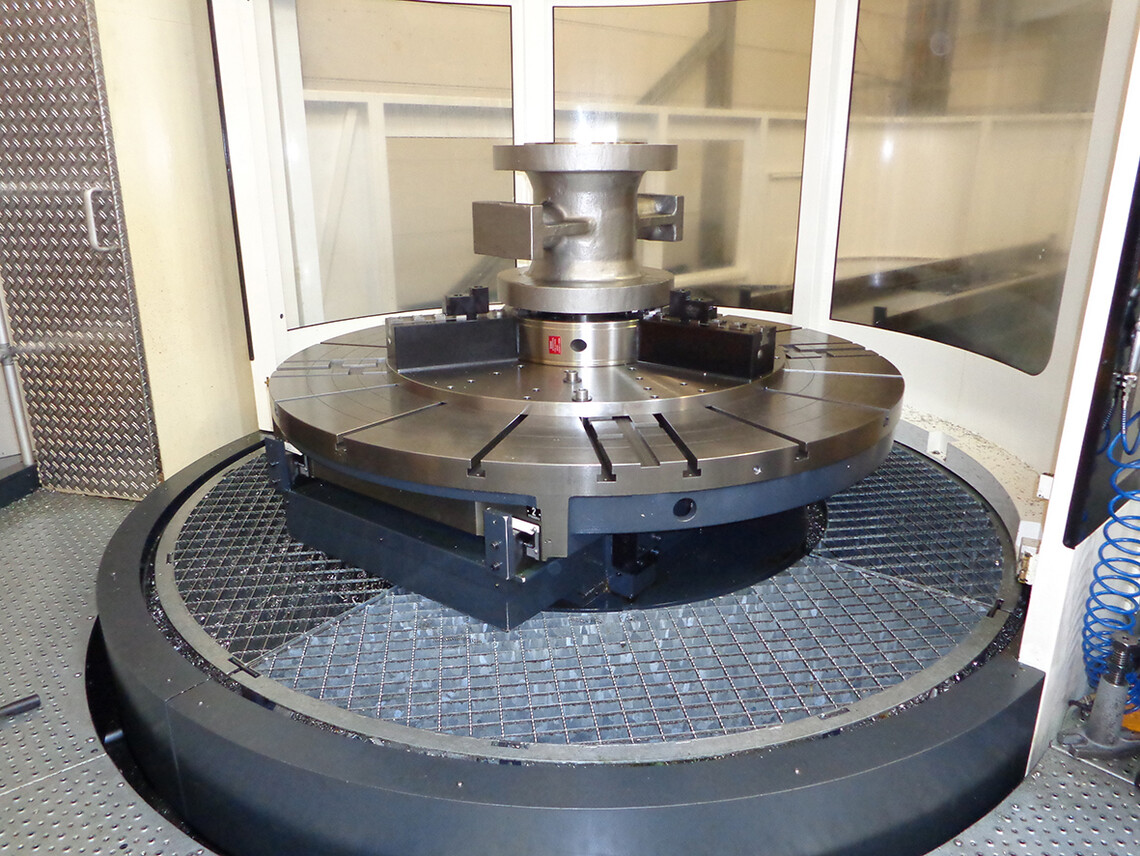

Manufacturing cast and VA housings at NTG Gelnhausen

Workpiece: Cast and VA housings

Task: Machining large and small workpieces with frequent changes

Solution: 3-jaw manual chuck with quick-change system DURO-TA XT 1200 mm

Customer benefit: Possibility to change from large to small workpieces in just minutes. High clamping force and radial run-out accuracy, low deadweight - and all of this with a diameter of 1200 mm

This customer requirement has been solved with:

Série DURO-TA XT

com trilhos de guia compridos para uma grande área de aperto e máxima flexibilidade, com elevadas forças de aperto, as máximas precisões de concentricidade, construção leve a favor de uma maior carga de peças de trabalho, concebida para uso vertical, precisões de duração e repetibilidade eficazes, no tamanho 250-1250 ; até 290 kN

Mais sobre a técnica

Mais no eShop


IWC Schaffhausen manufactures watch boards with a RÖHM power-operated index chuck in just one clamping position

To guarantee a high standard of process reliability and repetition accuracy, IWC Schaffhausen uses the ultra-compact 5-axis machining center KERN Micro for the operation. In this machining center, the prizewinning power-operated index chuck from RÖHM’s Micro Technology series is installed. The index chuck enables doublesided machining of boards without changing the clamping position. This makes it possible for IWC to achieve maximum precision and repetition accuracy in just one clamping position with dozens of machining steps and any number of tool changes being involved.

Application report: plates processing IWC Schaffhausen

Workpieces: Watch plates

Task: Process reliable and repeatable clamping for precise and doublesided machining of boards

Solution: Power-operated index chuck KPF-MT

Customer benefit: Highest precision and reduction of set-up time thanks to doublesided machining of boards in just one clamping position

This customer requirement had been solved with:

Power-operated index chuck KPF-MT

More information about the power-operated index chuck KPF-MT or other clamping solutions of the Micro Technology series you can find here:

Micro Technology Flyer


Machining of spindles with NC-Compact self centering vice RKZ

GMN Paul Müller Industrie GmbH manufactures spindles for machine tools as custom manufacturing at the highest level. To do justice to this claim in its own manufacturing in Nuremberg as well, the manufacturing specialists rely on the long-lasting and precision clamping devices from Röhm.

Application report GMN Paul Müller Industrie GmbH

Workpiece: Metal mandrel catridges

Task: Clamping of mandrel catridges for milling processing

Solution: RÖHM NC-Compact self centering vice RKZ with customized jaws

Customer benefit: Because of  the 3-sided machining,  manufacturing of parts with just one clamping process is now possible.



This customer requirement has been solved with:

RKZ-M

sem transmissor de força para apertar com uma maior pré-tensão, com força de aperto constante e uma grande precisão de repetibilidade, até 25 kN e abertura de 269 mm

Mais no eShop
