Collet chucks

Modular system for precision external clamping for turning, milling, drilling and measuring

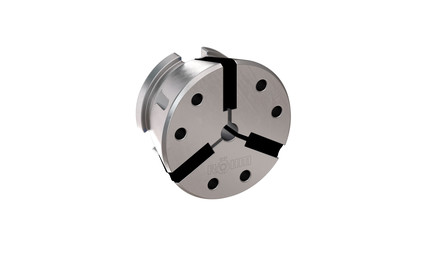

The new and modular CAPTIS clamping system is convincing in both rotary applications in turning machines as well as in stationary use in drilling, milling and machining centers and also measuring machines. The encompassing clamping enables precise concentricity and repeatability of 0.005 mm without deforming the workpiece.

The conversion from outer to inner clamping can be done in less than 1 minute with the quick-change function.  It works so well that we have registered this function for a patent. It works with any collets from the Captis series. Simply insert the Absis-C internal mandrel in the Caps gripper. Finished!


Captis-A – with stop and axial tightening

Force-actuated external clamping of round, square and hexagonal profiles for turning, milling and grinding operations as well as measuring. Ideal for machining insertion parts or on the main spindle.
Clamping range: Ø 4 – 120

Link to eShop

Link to US-eShop

Captis-D – with through-hole

Force-actuated external clamping for turning. Ideal for bar and pipe machining on the main spindle (with through-hole).
Clamping range: Ø 4 – 120

Link to eShop

Link to US-eShop

Captis-AF – with stop without axial tightening

Force-actuated external clamping of round, square and hexagonal profiles for turning, milling and grinding operations as well as measuring. Ideal for delicate workpieces, short clamping lengths and for use in opposed spindles or counter spindles.
Clamping range: Ø 4 – 120

Link to eShop

Link to US-eShop

Captis-M – with manual actuation, workpiece stop without axial tightening

Manual external clamping for rotating use in turning machines as well as stationary use in drilling, milling and machine centers, measuring machines and conventional machining
Clamping range: Ø 4 – 65

Link to eShop

Link to US-eShop

ABSIS-C

Used for internal clamping in the Captis series
Clamping range: Ø 19.7 – 83.2

Link to eShop

Link to US-eShop



[Translate to english:]

Die Captis Spannzangen sind umweltfreundlich mit leicht wechselbaren, flexiblen Gummisegmenten konstruiert. Hier sehen Sie, wie einfach das geht.



Operating principle of the Captis-D collet chuck in the video
