Centric grippers

for gripping round workpieces with three jaws

Equipped with three centrically arranged gripper fingers, RÖHM centric grippers are optimally suited for universal and self-centering gripping of round workpieces. Especially on robots or portals, the 3-jaw centric grippers prevail with their compact design, low dead weight and high gripping force

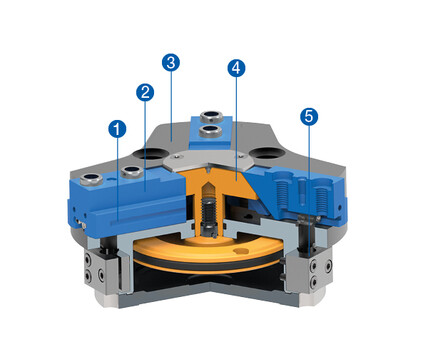

1: Lubrication pockets in the jaws for optimal grease distribution and high availability

2: Highest precision and service life from base jaws in proven T-slot guide

3: Body made of high-strength, hard-coated aluminum alloy

4: Wedge-hook principle with pneumatic actuation for high force and torque absorption

5: Position sensing possible by means of inductive and magnetic sensors


RZP

for universal gripping of round and cylindrical workpieces; fastening of the gripper fingers via centering sleeves; sizes from 64-300; jaw stroke up to 35 mm; jaw length up to 250 mm; workpiece weight up to 140 kg

Link to eShop

Link to US-eShop

RZP-A

for universal gripping of round and cylindrical workpieces; fastening of the gripper fingers via T-slot and positioning pin; sizes 64-160; jaw stroke up to 35 mm; jaw length up to 160 mm; workpiece weight up to 60 kg

Link to eShop

Link to US-eShop

Our catalogs and flyers
