HSK automatic clamping systems

for clamping HSK tools

Reliability, safety and a long service life are the main requirements of a tool clamping system. It is just as important for it to be possible to adapt the clamping systems individually to customer requirements. Many years of experience and technical superiority in all areas make it possible for RÖHM to be able to meet precisely these requirements.

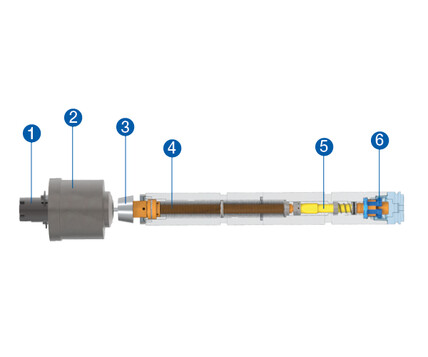

1: Rotary union for media feed of coolant and cleaning air

2: Stationary release unit, ideally suited for high speeds – on request with end position damping and spindle bearing offloading

3: Stroke monitoring for position monitoring, different variants possible

4: Clamping unit – long-lasting design of the spring assembly

5: Draw bar extension with integrated control of the media feed-through

6: Clamping set with short overall length, compact force flow and high rigidity


The first modular tool clamp from RÖHM allows faster customer-specific solutions
