High-precision geared scroll chucks

for variable manufacturing with a large jaw adjustment range and maximum concentricity

Plane spiral chuck in a steel design with which the workpiece can be adjusted very sensitively to the desired concentricity via 3 tangentially arranged adjusting spindles.

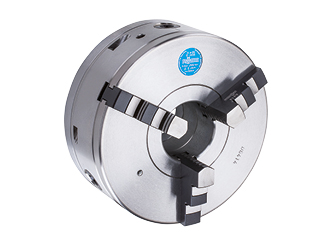

ZS Hi-Tru series with fine adjustment

for machining workpieces with concentricity on turning and grinding machines as well as dividing units, 80-315 mm outside diameter; up to 69 kN clamping force
